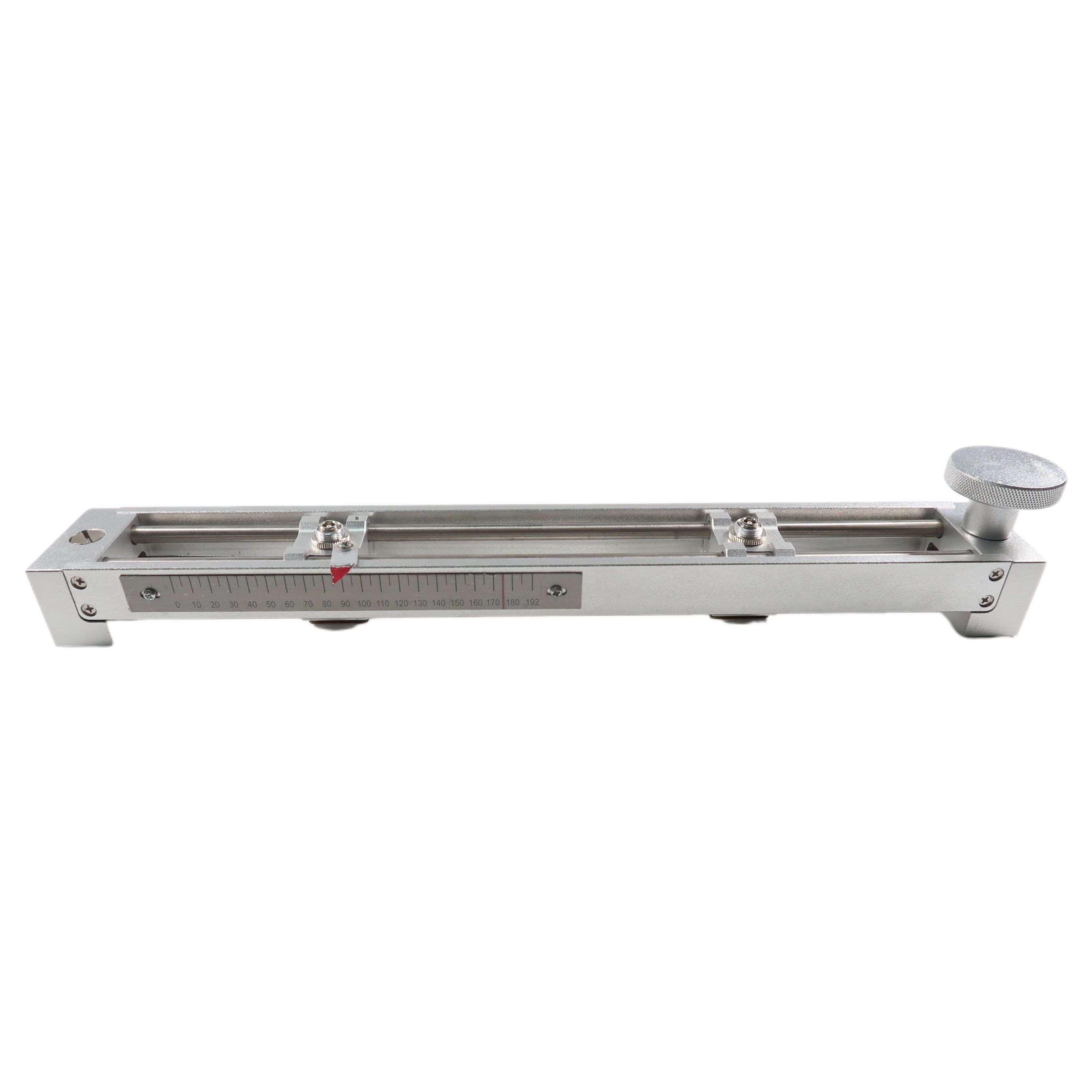

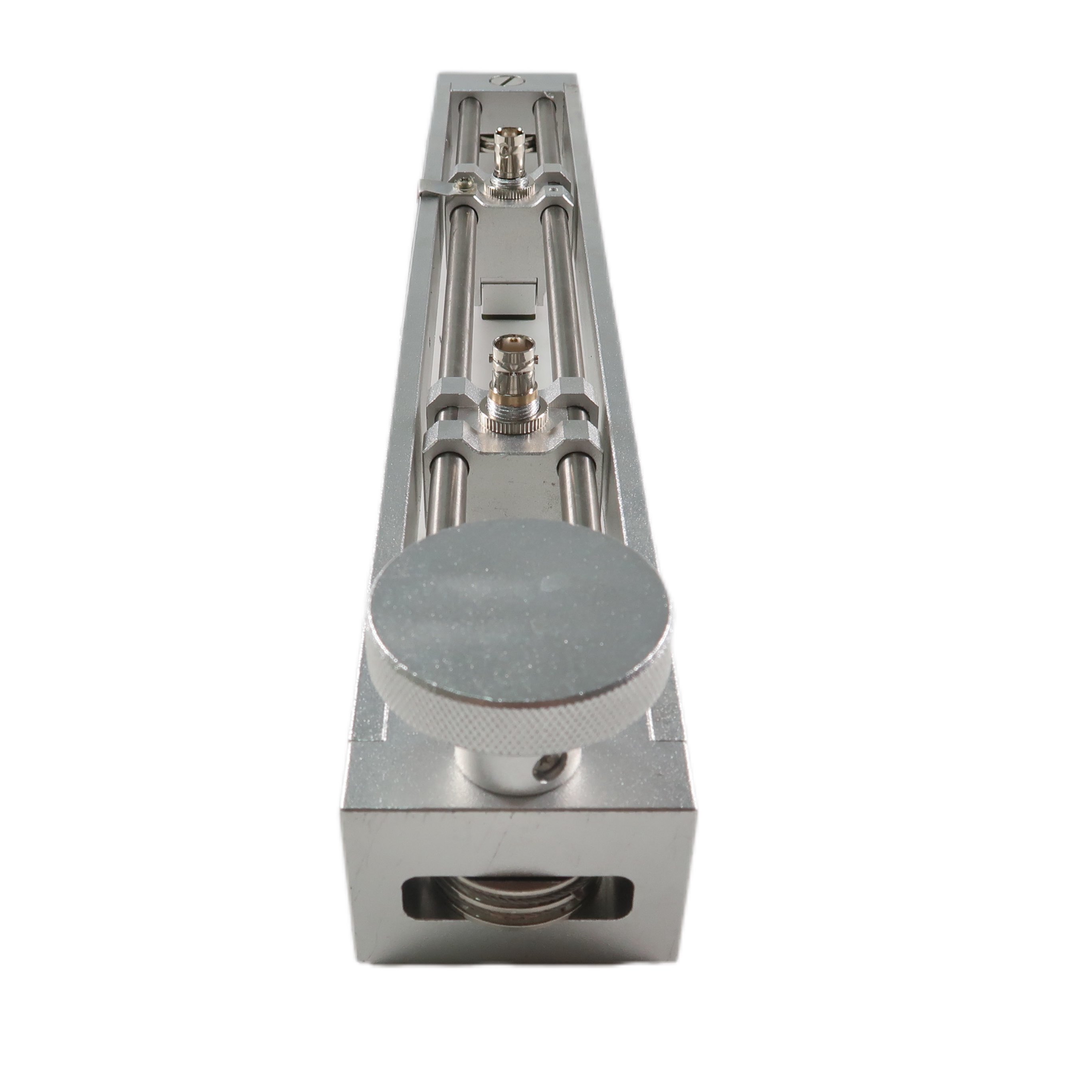

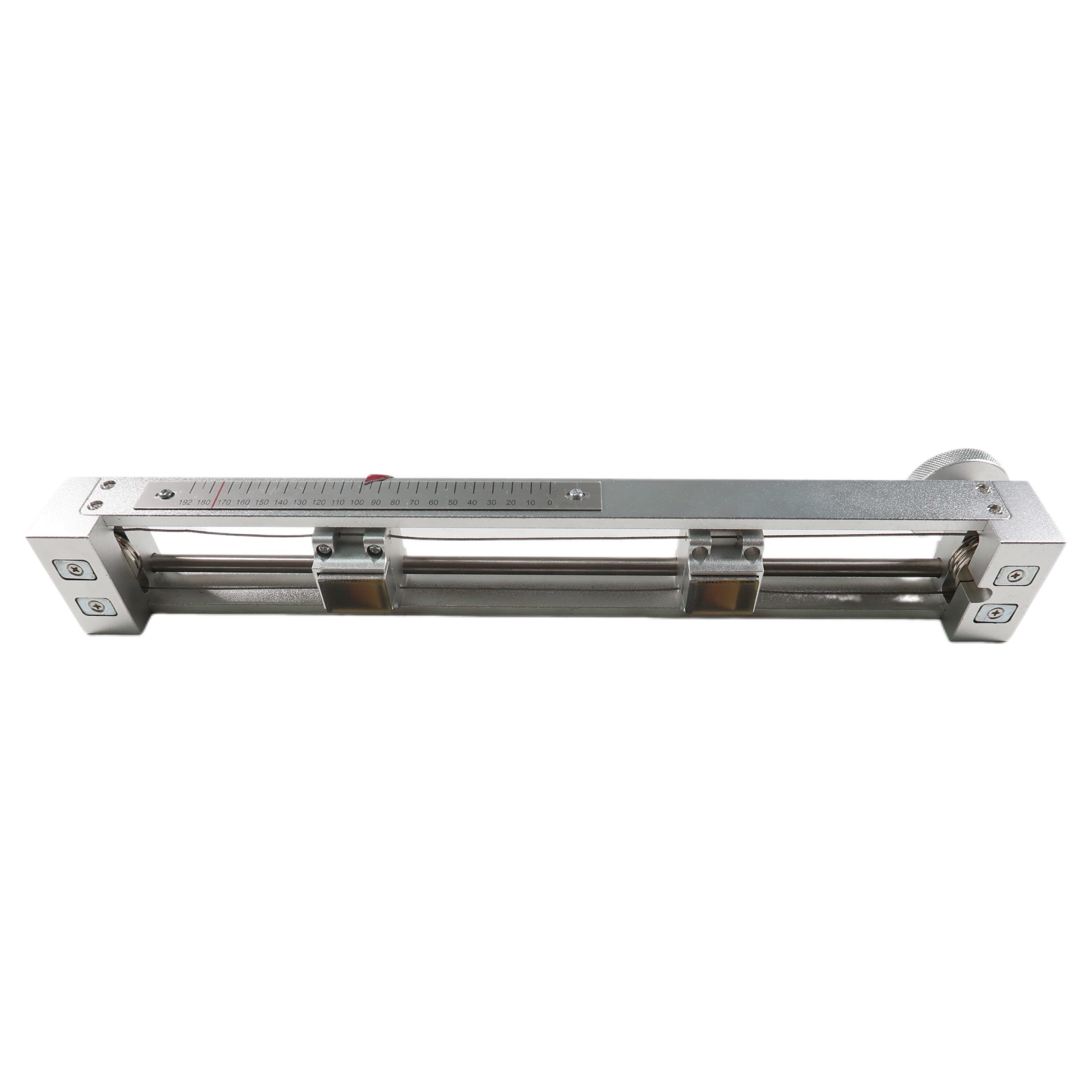

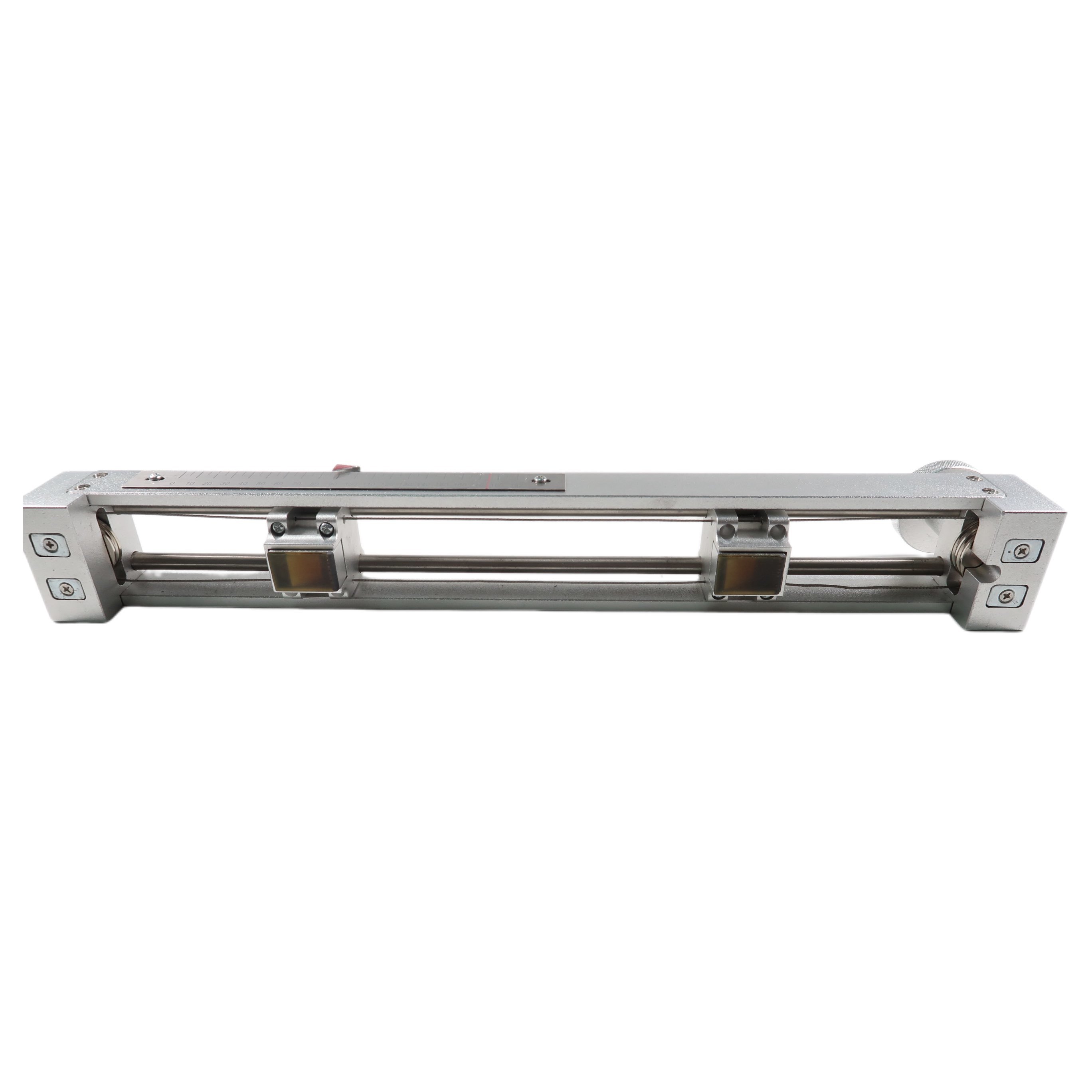

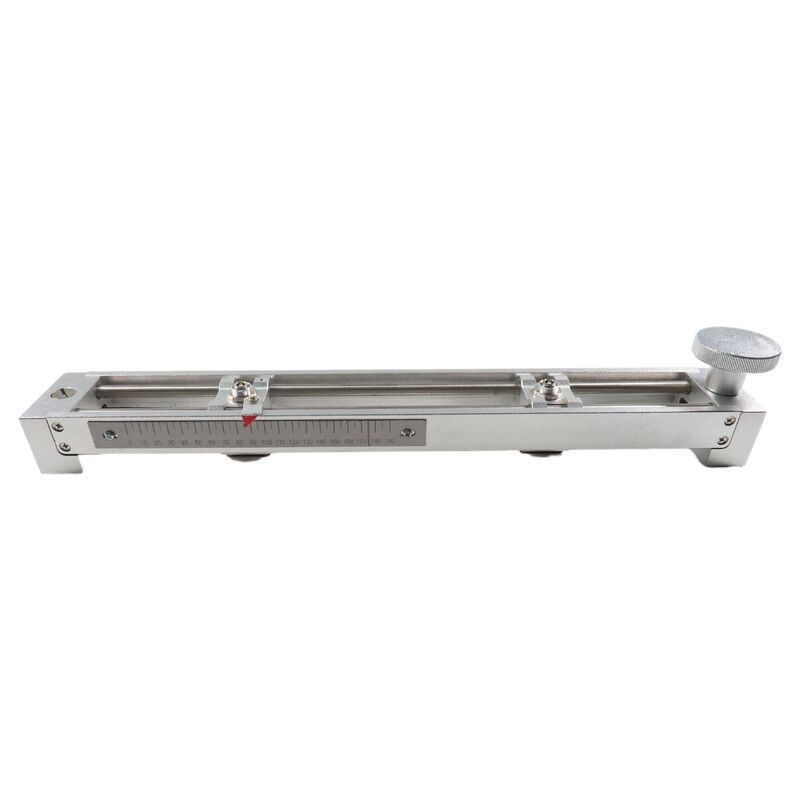

TMRW-1 Tandem Rig with TFD811RW for Rail Weld Ultrasonic Testing and Tandem Probe Rig Inspection

Application Ultrasonic testing of rail welds, including flash butt welds and alumino-thermic welds. Your Solution The tandem rig TMRW-1 enables the detection of flaws perpendicular to the rail surface — such as lack of fusion and porosity — across the whole height of the weld with high sensitivity and reproducibility. The tandem rig contains probe holders for two 45° angle beam probes, which can be moved in opposite directions. One is operated as the transmitter and the other
